การศึกษาพฤติกรรมคลื่นกระแทกด้วยเทคนิคชาร์โดว์กราฟ

Wuttichai Sittiwong

doi:10.60136/bas.v14.2025.2915

Authors

Wuttichai Sittiwong Division of Mechanical Engineering, Faculty of Agriculture and Technology, Rajamangala University of Technology Isan SURIN Campus

DOI:

https://doi.org/10.60136/bas.v14.2025.2915

Keywords:

Shadowgraph technique, High speed video camera, Smokeless powder, Gun muzzle

Abstract

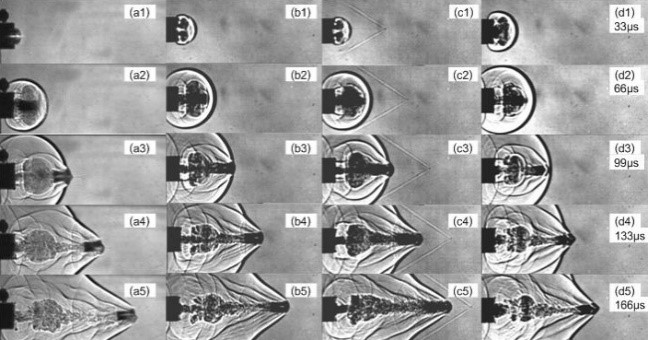

The purpose of the research is to study the differences shock waves behavior, the cylindrical projectile of following five head shapes are assigned: 1) flat shape head, 2) round nose head, 3) flat nose head, 4) 30º boat tail head, and 5) 45º boat tail head shape. The projectile driven with 3 grams of smokeless powder. The behavior of the shock waves recorded using the shadowgraph technique in conjunction with a high-speed video camera. According to the results of the experiment, the shadowgraph technique combined with a high-speed video camera can clearly record the behavior of the shock waves from the projectiles. In addition, the projectile velocity is divided into two groups according to the shape of the bullet: flat shape, round nose headed, and flat nose head projectile. It has a similar average speed of about 780 meters per second. The group including projectiles with 30º, and 45º boat tail shapes had a velocity of around 550 m/s. It has an average speed of about 550 meters per second.

References

Kennedy CF, Field JE. Damage threshold velocities for liquid impact. J Mater Sci. 2000;35:5331-9.

Field JE, Camus JJ, Tinguely M, Obreschkow D, Farhat M. Cavitation in impacted drops and jets and the effect on erosion damage threshold. Wear. 2012;290:154-60.

Gohardani O, Williamson DM, Hammond DW. Multiple liquid impacts on polymeric matrix composites reinforced with carbon nanotubes. Wear. 2012;294:336-46.

Settles GS. High-speed imaging of shock waves explosions and gunshots. Am Sci. 2006;94(1):22-31.

Shergold OA, Fleck NA, King TS. The penetration of a soft solid by a liquid-jets, with application to the administration of a needle-free injection. J Biomech. 2006;39(14):2593-602.

ปริญญา เลิศสินไทย. การรักษาด้วยคลื่นช็อกในความผิดปกติระบบโครงสร้างกระดูกและกล้ามเนื้อ. J Med Tech Phy Ther. 2015;27(2):107-24.

วลัยลักษณ์ กุลไทย, ฉกาจ ผ่องอักษร. การศึกษาเปรียบเทียบผลของคลื่นกระแทกชนิดเรเดียลกับคลื่นเสียงความถี่สูงในการลดอาการปวดในผู้ป่วยโรคข้อเข่าเสื่อม. J Thai Rehabil Med. 2017;27(1):18-24.

Shrivastava SK, Kailash. Shock wave treatment in medicine. J Biosci. 2005;30(2):269-75.

Libal U, Spyra K. Wavelet based shock wave and muzzle blast classification for different supersonic projectiles. Expert Syst Appl. 2014;41(11):5079-104.

Jiang Z, Huang Y, Takayama K. Shocked flows induced by supersonic projectiles moving in tubes. Comput Fluids. 2004;33(7):953-66.

Horii T, Kasahara J, Endo T, Fujiwara T. Experimental studies on supersonic combustion phenomena of CO-O2-H2 premixed gases around hypersonic projectiles. JSME Int J, Ser B. 1998;41(2):316-21.

Hao B, Lu YG, Dai H. Ballistic characteristics of high-speed projectiles entering water vertically. J Appl Fluid Mech. 2023;16(10):1962-73.

Chen T, Guo Z, Zhao G, Zhang W. A discrete method and experimental study for the propagation of shock wave induced by high-speed projectile entering water-filled tanks. Ocean Engineering. 2022;248:1-15.

Toker G, Korneev N. Disappearance of holographic and interference fringes accompanies optical diagnostics of a supersonic bow shock flow. Optik. 2008;119(3):112-6.

Jiang Z. Wave dynamic processes induced by a supersonic projectile discharging from a shock tube. Phys Fluids. 2003;15(6):1665-75.

Sukhon TA. Comparison of the effectiveness of radial shock wave therapy (RSWT) and deep friction massage (DFM) in myofascial pain syndrome of upper trapezius. Medical Journal of Srisaket Surin Buriram Hospitals. 2018;33(2):129-44.

Ladawan S. Comparison of ureteroscopy versus extracorporeal shockwave lithotripsy in the treatment of distal ureteral stones. Region 4-5 Medical Journal. 2016;35:114-23.

Sittiwong W, Seehanam W, Pianthong K. Effect of projectile shape on wave behavior in solid. Journal of Science Ladkrabang. 2015;24(1):1-5.
