Increasing Accuracy of pH Measurements by Image Processing Technique on Smartphones
DOI:
https://doi.org/10.55164/jgrdi.v1i1.714Keywords:
Color Spaces, Colorimetric Technique, pH Measurement, SmartphoneAbstract

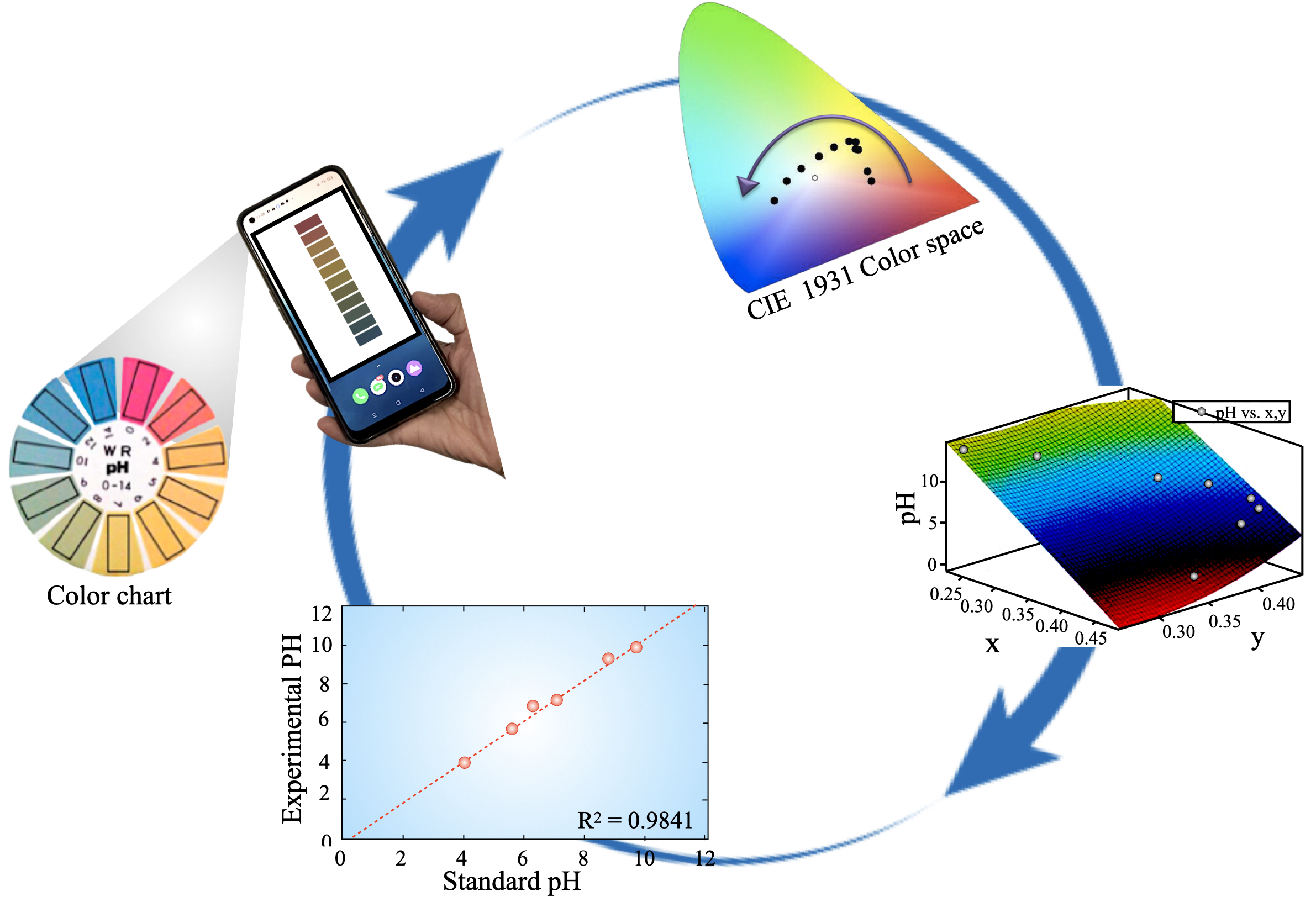

This research demonstates a technique for measuring acid-base (pH) values from the color changes occuring on pH paper using smartphones. The purpose of this research is to increase the accuracy of the pH measurement from the reader’s visual evaluation to be close to the values obtained from the standard pH meter by using image processing technique on smartphones. The steps in the experiment are to take the images of pH papers with the smartphones’ camera and then to convert the color space of the captured images from RGB to the device independent CIE 1931 standard color space. A calibration equation was constructed to determine the pH values from the color intensities. In the experiment, six buffer solutions were tested and the color values were analyzed to determine the pH values from the generated calibration equation. From the experimental results, it was found that the error of pH values measured by the smartphone was less than 8.7% from the standard pH meter and the correlation coefficients were 0.9841 and 0.9901 for the HTC One and the Lenovo K900, respectively. Thus, the proposed colorimetric technique can increase the accuracy of the pH measurement using smartphones to be close to the values from the standard pH meter. This will be useful in the food industry where smartphones or Imaging equipment are used to increase the accuracy of products’ pH values by the image processing techniques.
References
Kuswandi, B., Jayus, Larasati, T.S., Absullah, A. & Heng, L.Y., (2012). Real-time monitoring of shrimp spoilage using on-packaging sticker sensor-based on natural dye of curcumin. Food Analytical Methods. 5(4), 881-889. https://doi.org/10.1007/s12161-011-9326-x
Kiryukhin, M.V., Lau, H.H., Gob, S.H., Teh, C., Korzh, V. & Sadovoy, A. (2018). A membrane film sensor with encapsulated fluorescent dyes towards express freahness monitoring of packaged food. Talanta. 182, 187-192. https://doi.org/10.1016/j.talanta.2018.01.085
Ahmad, N.A., Heng, L.Y., Salam, F., Zaid, M.H.M. & Hanifar, H.A., (2019). A colorimetric pH sensor based on Clitoria sp and Brassica sp for monitoring of food spoilage using chromametry. Sensors. 19(21), 4813. https://doi.org/10.3390/s19214813
Rudolph, N., Voss, S., Moradi, A.B., Nagl, S. & Oswald, S.E., (2013). Spatio-temporal mapping of local soil pH changes induced by roots of lupin and soft-rush. Plant and Soil. 369, 669-680. https://doi.org/10.1007/s11104-013-1775-0
Zhu, Y., Zhang, J., Song, J., Yang, J., Du, Z., Zhao, W., Guo, H., Wen, C., Li, Q., Sui, X. & Zhang, L. (2020). A multifunctional pro-healing zwitterionic hydrogel for simultaneous optical monitoring of pH and glucose in diabetic would treatment. Advanced Functional Materials. 30(6), 1905493. https://doi.org/10.1002/adfm.201905493
Ngo, Y.L.T., Nguyen, P.L., Jana, J., Choi, W.M., Chung, J.S. & Hur, S.H., (2021) Simple paper-based colorimetric and fluorescent glucose using N-doped carbon dots and metal oxide hybrid structures. Analytica Chimica Acta. 1147, 187-198. https://doi.org/10.1016/j.aca.2020.11.023.
Zhao, W., Zhang, G., Du, Y., Shen, S., Fu, Y., Xu, F., Xiao, X., Jiang, W. & Ji, Q., (2021). Sensitive colorimetric glucose sensor by iron-based nanzymes with controllable Fe valence. Journal of Material Chemistry B. 9, 4726-4734. https://doi.org/10.1039/D1TB00370D
de Mora, K., Joshi, N., Balint, B.L., Ward, F.B., Elfick, A. & French, C.E. (2011). A pH-based biosensor for detection of arsenic in drinking water. Analytical and Bioanalytical Chemistry. 400(4), 1031-1039. https://doi.org/10.1007/s00216-011-4815-8
Courbat, J., Briand, D., Damon-Lacoste, J., Wollenstein, J. & de Rooij, N.F. (2009). Evaluation of pH indicator-based colorimetric films for ammonia detection using optical waveguides. Sensors and Actuators B: Chemical. 143(1), 62-70. https://doi.org/10.1016/j.snb.2009.08.049
Martinez, A.W., Phillips, S.T., Butte, M.J. & Whitesides, G.M. (2007). Patterned paper as a platform for inexpensive, low-volume, portble bioassays. Angewandte Chemie. 46(8), 1318-1320. https://doi.org/10.1002/anie.200603817
Bruzewicz, D.A., Reches, M. & Whitesides, G.M. (2008). Low-cost printing of poly (dimethylsiloxane) barriers to define microchannels in paper. Analytical Chemistry. 80(9), 3387-3392.https://doi.org/10.1021/ac702605a
Lee, D.-S., Jeon, B.G., Ihm, C., Park, J.-K. & Jung M.Y. (2011). A simple and smart telemedicine device for developing regions: a pocket-sized colorimetric reader, Lab on a Chip. 11(1), 120-126. https://doi.org/10.1039/c0lc00209g
Shen, L., Hagen, J.A. & Papautsky, I. (2012). Point-of-care colorimetric detection with a smartphone. Lab on a Chip. 12(21), 4240-4243. https://doi.org/10.1039/c2lc40741h
Nassau, K. (1998). Color for science, art, and technology. (Vol. 1). North-Holland. https://scis.uohyd.ac.in/ ~chakcs/cipclass/lecs/ColourForTechnology.pdf
